Siemens BIPEX-S


The Siemens Bipex-S jaw coupling is a torsionally flexible, back-lash free coupling. As with standard industrial jaw couplings, the key benefit of the Bipex-S is its simple installation. Its simple 3-piece design mean that the coupling hubs can be fitted to each shaft and axially plugged into each other.

Made up of two cast iron or aluminium hubs and a polyurethane element the Bipex-S is capable of torques from 0.5Nm to 655Nm.

Hubs can be coupled to shafts by many different methods including set-screws, bore & key, clamping hubs or expanding hubs.

Advantages and services

  • A large variety of design options for maximum flexibility
  • Temperature range: -50 °C to +120 °C
  • Rotational speed: max. 47,500 rpm
  • Easy to install
  • Torsionally stiff
  • Backlash-free
  • Compensation for shaft misalignment
  • Low moment of inertia
  • Suitable for highly dynamic applications

Application examples

  • Positioning drives
  • Stepping motors
  • Linear units
  • Machine tools
  • Packaging machines
  • Textile machines
  • Filling plants
  • Production lines
  • Material handling machines
  • Printing machines
  • Wood processing plants

FLENDER Couplings Configurator

Simple configuration: online in X.CAT NG.

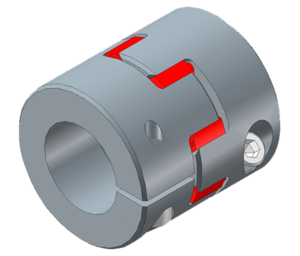

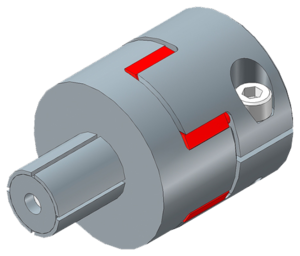

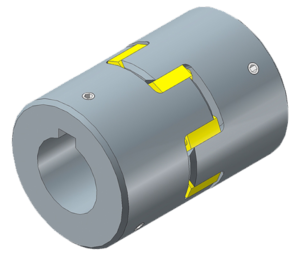

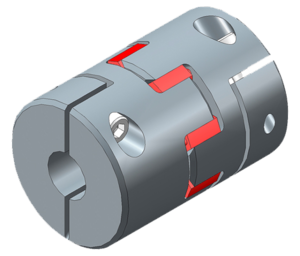

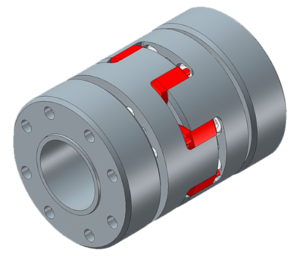

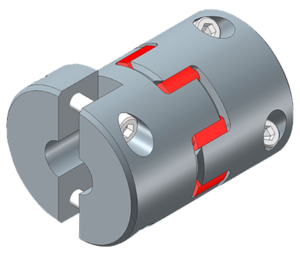

Please see below for the range of BIPEX-S couplings we supply...

(Please note that we are able to supply a wider range of couplings than displayed on the website. Please get in touch if your application requires a different Type.)
