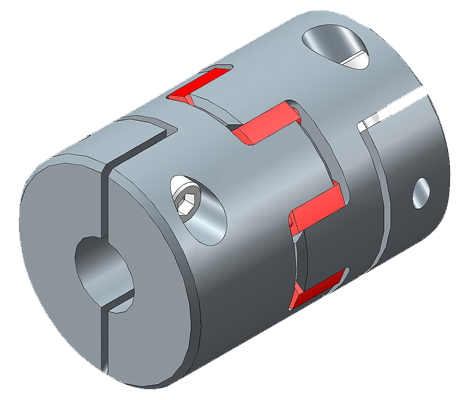

BGG Clamping Hub Elastomer Jaw: 0.5-310 Nm

---

The slotted clamping hub allows a frictionally engaged connection to the input and output shaft. A single tightening screw per hub ensures easy assembly.

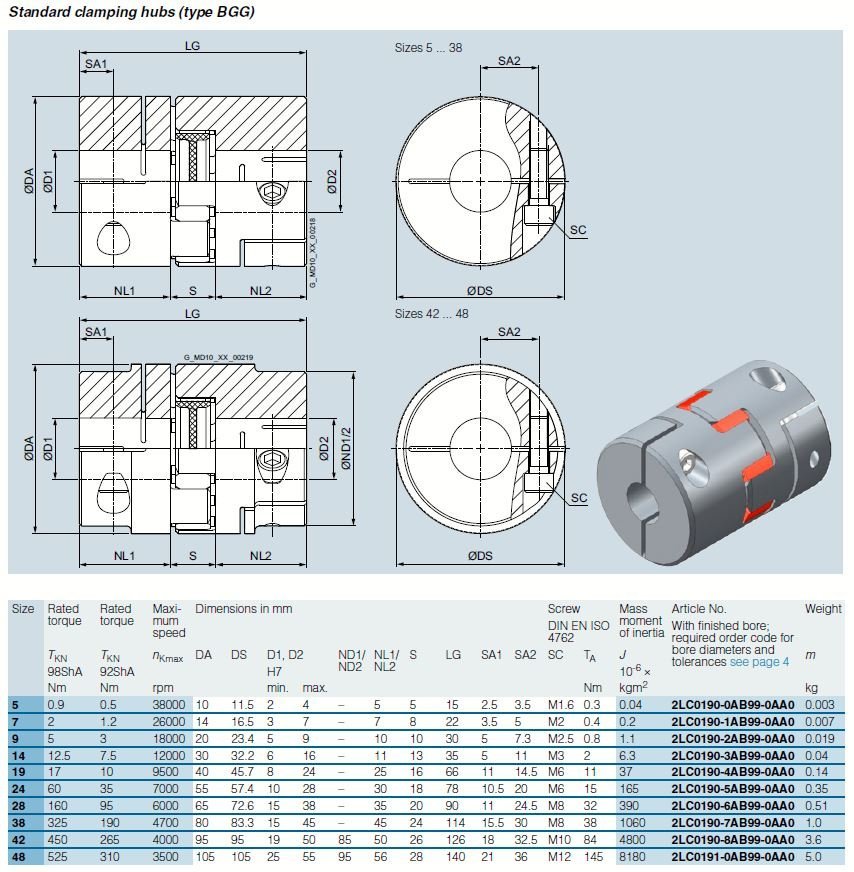

The maximum torques that can be transmitted by the clamping connection are listed on the table below (Manuals).

A keyway according to DIN 6885-1 can be selected additionally as an option.

Cam ring made of polyurethane with Shore hardness 98 ShA as standard (red cam ring)

For other hardness grades, see (Downloads) Below.

Weights and mass moments of inertia apply to maximum bore diameters.
