Neugart Calculation Program

The industry's premiere drivetrain design software is now even easier to use- and just as powerful.

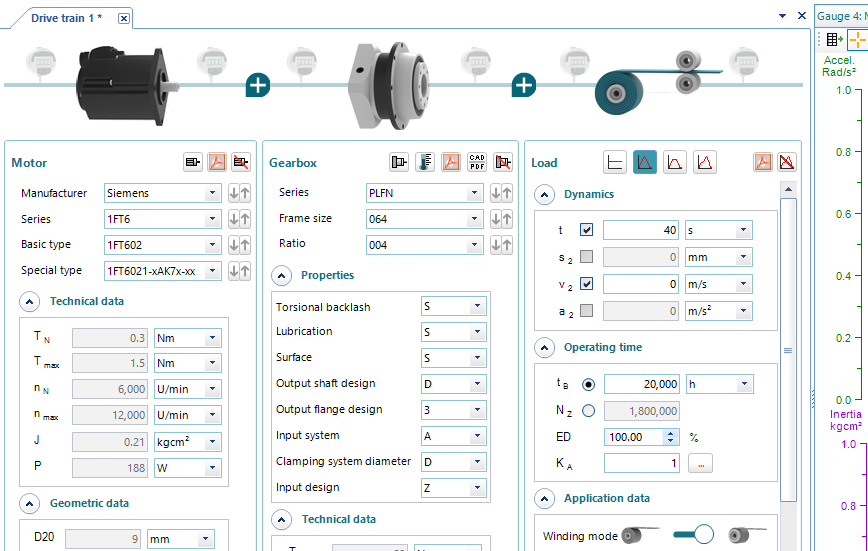

The NCP 4.0 (Neugart Calculation Program) software calculates and displays the design of an entire drivetrain, allowing you to size and select the correct gearbox for your application. In comparison with NCP v3.3, version 4.0 is even more user-friendly and intuitive, with software characterized by a well organized user-interface that scales to your screen.

One major advantage of NCP 4.0 is the possibility of recording several drivetrains in one project, reducing the amount of documentation, streamlining archiving, protecting resources and significantly improving clarity. NCP 4.0 is also designed to allow the graphic dynamic and load profile per drivetrain to remain permanently visible.
New users will find the program easy to pick up thanks to illustrated tooltips that provide valuable text information, supporting an intuitive workflow. Other new features will impress long-term users:

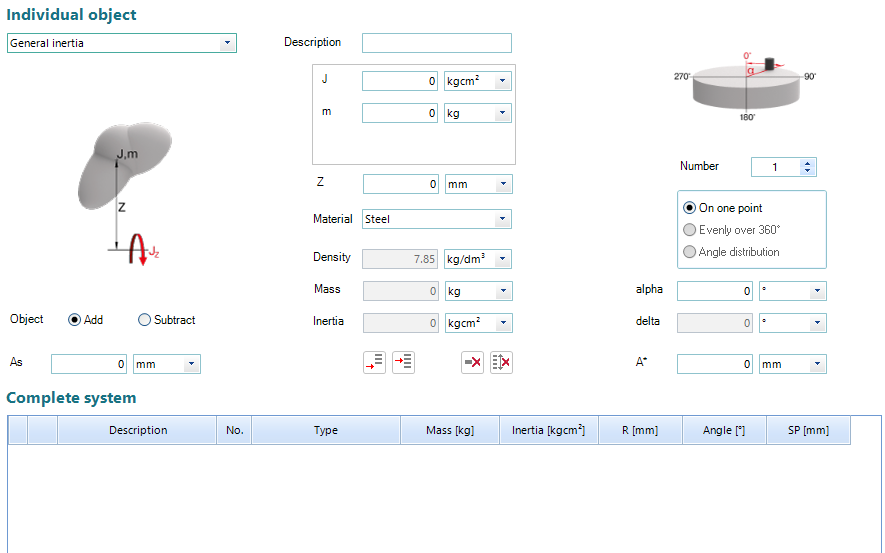

  • A force calculator toll integrated into the program measures non-perpendicular force at the drive shaft in a simple way and quickly displays all relevant values at a glance.
  • In the event of inconsistent input, the 'smart' software provides user support with useful tips.
  • An improved import/export interface for the dynamic and load profile provides a smooth exchange of data.
  • Revised product filter names product selection easier than ever.
  • Backwards compatibility with previous version of NCP.

To give you maximum flexibility when designing gearboxes and drivetrains, the motor database now has over 14,000 motors from more than eighty manufacturers. Neugart's own WPSFN and PSBN 142 gearbox series have also been included.

HMK can get your company up to speed with this powerful and versatile program. Contact us to book an appointment.

Installing NCP

  1. Go to Neugart's website

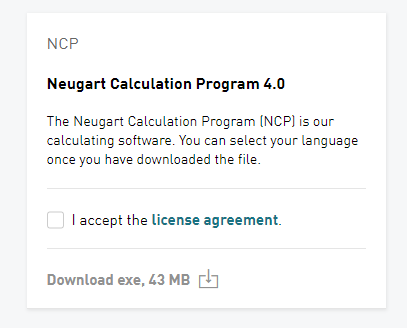

  2. Tick the 'I accept the license agreement' box and click the download button

  3. Once the download is complete, open the Setup program.

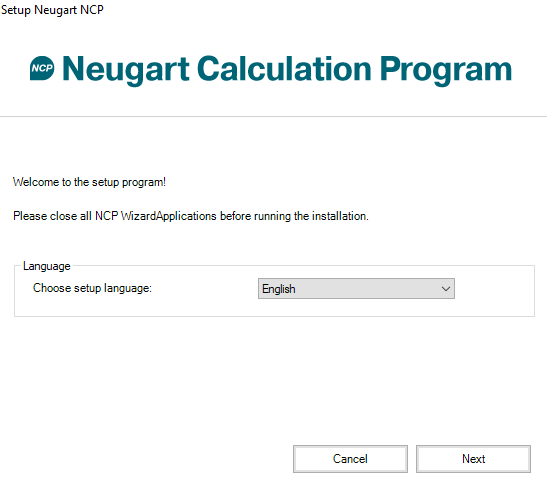

  4. Select your preferred language from the drop-down menu. On the next screen agree to the terms of use.

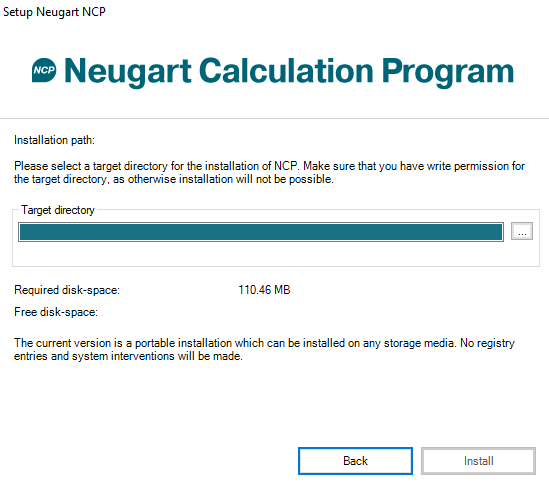

  5. Enter a directory to install the NCP program to and click 'Install'.

  6. Once NCP is installed open the program itself.

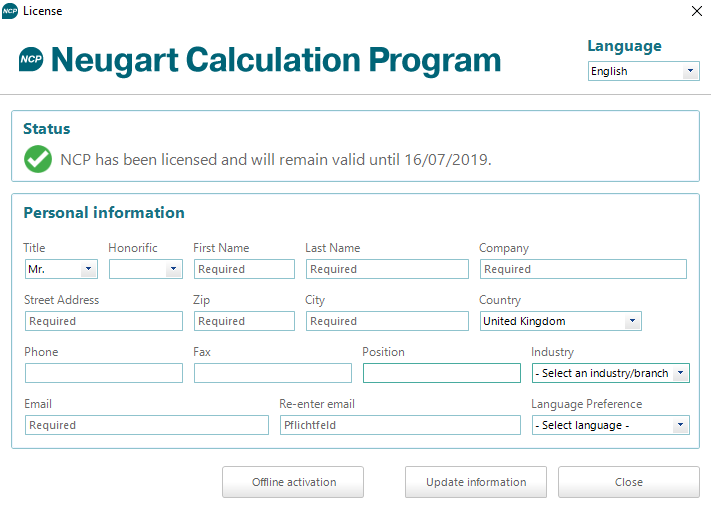

  7. You will now have to register for a licence for the program. The easiest way to do this is to enter your information in the  To do this enter your information in the form and press 'Update Information'. This will send the information to Neugart, who will then send you an email with a link to register the product.

  8. Click the link in your emails and your NCP program will be registered and ready to use.
