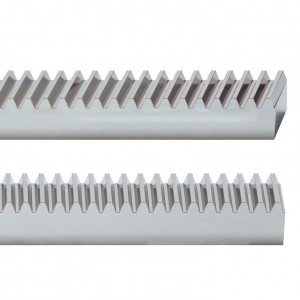

Atlanta Basic Rack: BR


Quality Class 9

Technical Data:

  • Heat-treatable steel according ATLANTA-Standard
  • Milled teeth
  • Bright Steel
  • Total pitch error GTf/1000 ≤ 0,150mm
  • 19°31'42" helical and straight tooth system
  • Module 1 to 10
  • Max. feed force per pinion contact up to 53,5 kN



Quality Class 10

Technical Data:

  • Heat-treatable, bright steel according ATLANTA-Standard
  • Teeth hardened with the ATLANTA high performance hardening process
  • Total pitch error GTf/1000 ≤ 0,200mm
  • 19°31'42" helical and straight tooth system
  • Module 1 to 12
  • Max. feed force per pinion contact up to 252,5 kN

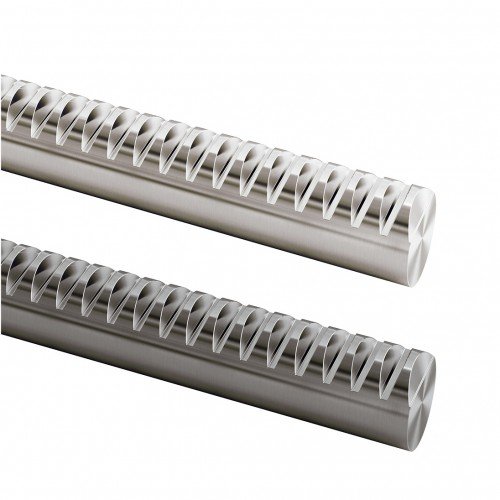

Round Racks

Quality Class 9

Technical Data:

  • Material: C45
  • Bright Steel
  • Teeth milled
  • Profile drawn
  • Total pitch error GTf/1000 ≤ 0,016mm
  • Module 1 to 5
  • Length 1000 mm
  • Max. feed force per pinion contact up to 16 kN

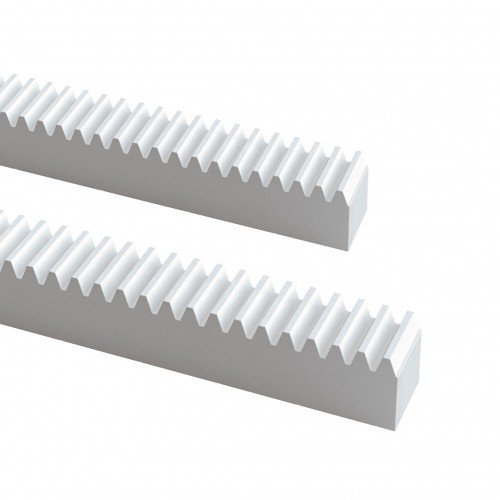

Plastic Racks

Quality Class 10

Technical Data:

  • Material: POM
  • Teeth milled
  • Total pitch error GTf/1000 ≤ 0,300mm
  • Module 1 to 3
  • Length 1000 mm
  • Max. feed force per pinion contact up to 0,4 kN

Overview

Class Rack Type Quality
Total pitch
error
( ±µm/m)
Applications
helical
toothed
straight
toothed
Basic
Rack
( BR)
milled 9 150
Linear axes with low load
Feed units for adjustment
Lifting axes, handling, welding robots
Series 47 Series 25
hardened 10 200 Series 39 Series 34

Manuals

Operation and Maintenance Instruction for Racks & Pinions:

Load table for Rack & Pinion Drives
Helical Toothed system:
