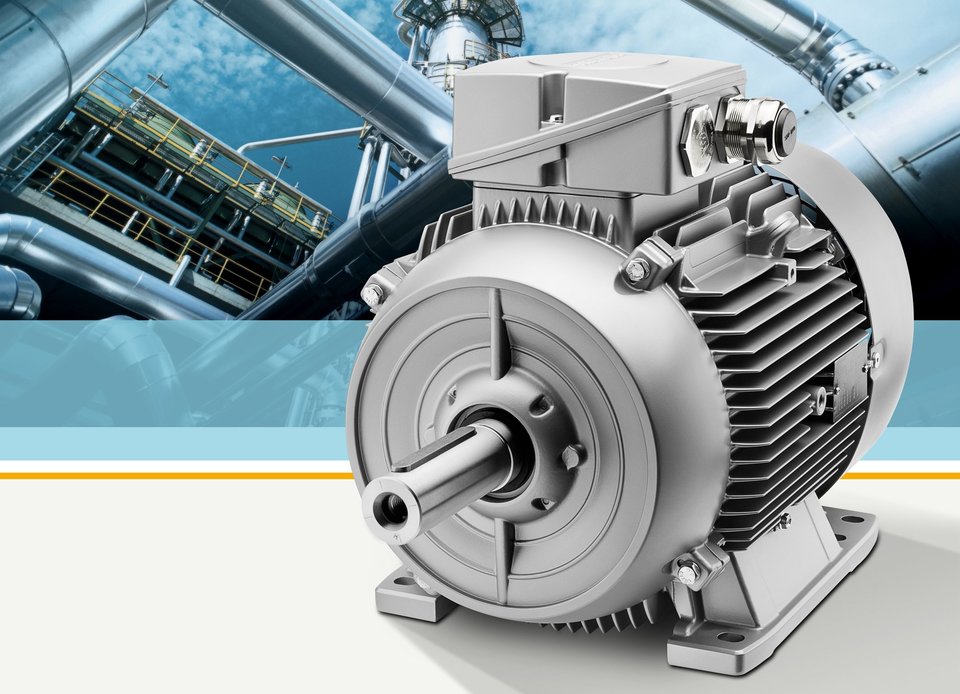

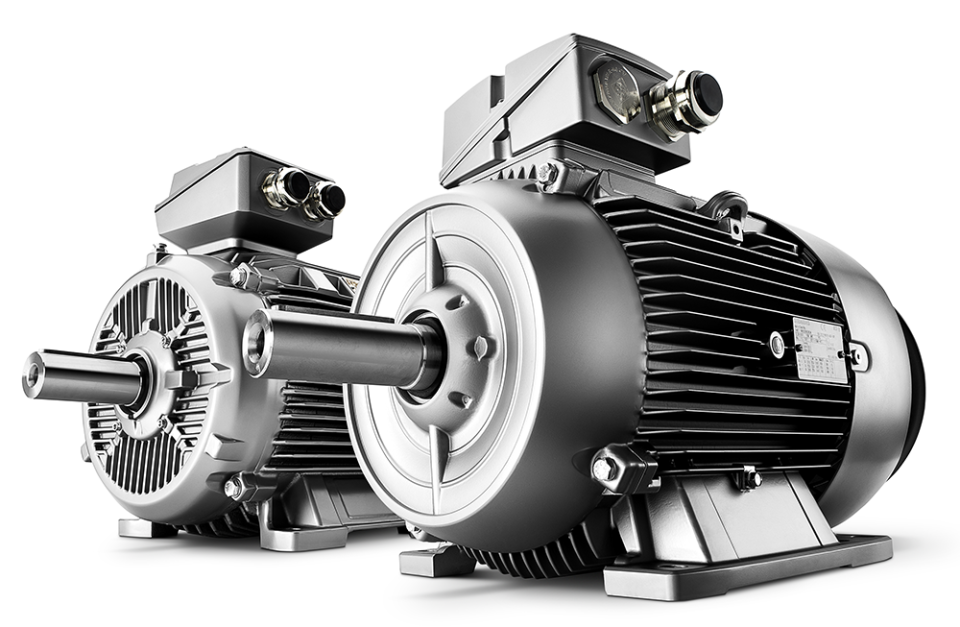

SIMOTICS XP

The Explosion Proof Motor From Siemens


With the explosion-protected motors SIMOTICS XP from Siemens you are going further than the basic safety requirements: The rugged Ex motors operate completely reliably even under the most extreme conditions – both DOL and VSD operation - and this has been proven worldwide a hundred thousand times over. And what is more, there are no gaps in the Ex motor range, they meet all requirements with maximum safety and high efficiency during operation.

We offer drive solutions with double protection for exceptional requirements. The result: A portfolio of motors that is globally unrivalled in terms of scope and standard.

  • Type spectrum IEC
    Our explosion-protected motors SIMOTICS XP fulfill the directive 94/9/EG (ATEX):
    - Integrated gray cast iron series for standard and explosion-protected motors
    - Motors with “increased safety” - “e” (Ex e IIC) type of protection, Motors with flameproof enclosure - “d” (Ex de IIC), Motors in non-sparking design - “n” (Ex nA IIC) and motors with increased safety "t" (Ex tb IIIC, Ex tc IIIB)
  • Type spectrum NEMA
    Explosion-proof motors fulfill the strict requirements according to:
    - Class I, Group C&D
    - Class II, Groups F&G
    - Division 1, hazardous areas


Overview


Type of protection:Increased safety
Ex e
Flameproof enclosure
Ex d
Non-sparking
Ex nA
Dust explosion protection
Ex tb, Ex tc
NEMA XP
Power range: 0.12 - 165 kW0.25 - 460 kW0.09 - 1000 kW

0.09 - 1000 kW1 - 300 HP
Voltage range:
All commonly used voltages

230, 460 & 575 V with 60 Hz
Design:common construction types
Frame size: 63 M - 315 L71 M - 35563 M - 45063 M - 450143T - 449T
Rated speed:750 - 3600 min -1900-3600 min -1
Application area:Ex-Zone 1
II 2G
Ex e IIC T1-T3
Ex-Zone 1
II 2G
Ex de IIC T1-T6
Ex-Zone 2
II 3G
Ex nA IIC T3
Ex-Zone 21/22:
Zone 21:
II 2D
Ex tb
IIIC T...
Zone 22:
II 3D
Ex tc
IIIB T...
UL listed
Class I, Groups C&D
Class II, Groups F&F,
Division 1 hazardous areas
VSD operation optional:SINAMICSSINAMICSSINAMICSVariable Torque 20 : 1
(143T - 449T)
Constant Torque
4 : 1
(143T - 326T)
Constant Torque
6 : 1
(365T - 445T)
