To install a brake resistor next to the inverter in a control cabinet, it is also necessary to mount the resistor in a compact and space-saving way. With the help of a simple mounting bracket, KOCH brake resistors meet all these demands.

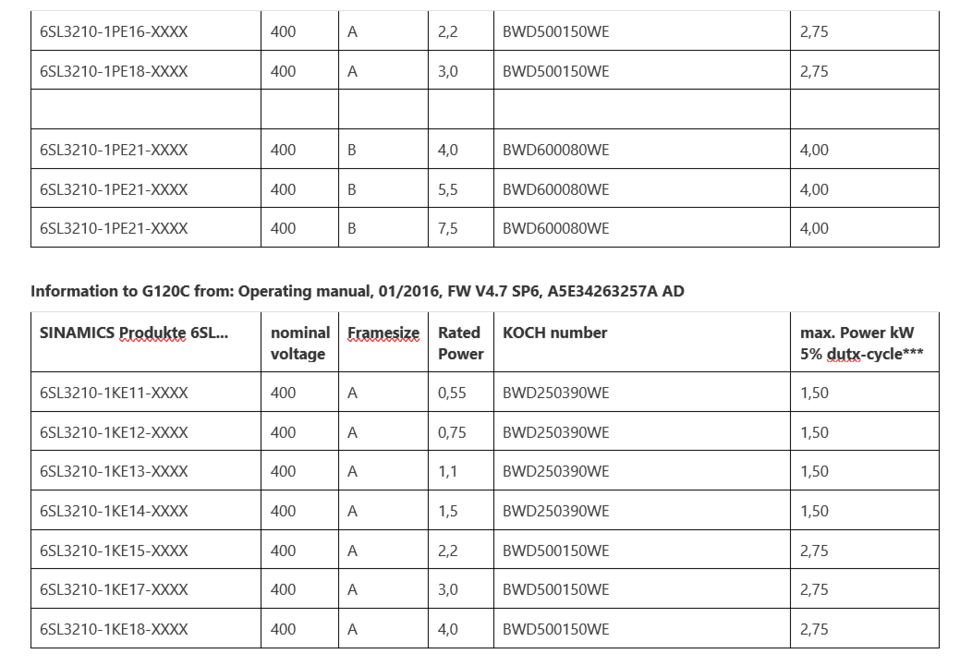

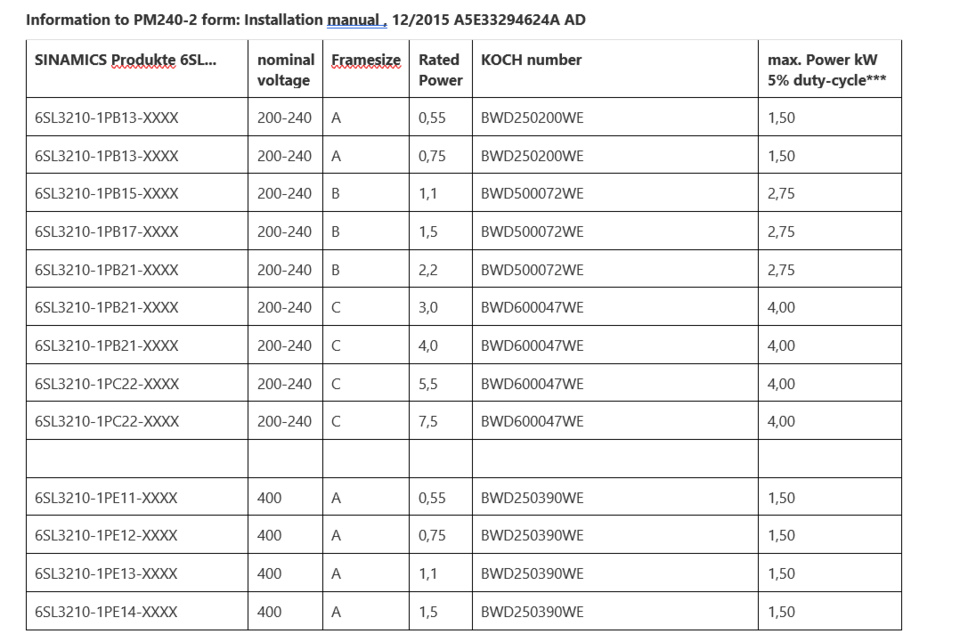

Since there is a lack of space in the control cabinet in a large number of applications, the need for resistors in a substructure frame was recognized and implemented. This customer-specific solution makes it possible to mount fitting resistors for the SIMANICS G portfolio between the inverter and the control cabinet panel in a space-saving way. They can also be mounted on a hat rail clamp. This not only saves space in the control cabinet, but also saves time.

A​dvantages:

• compact
• space saving
• protection class up to IP 65*
• highly impulse secure
• low inductance
• "intrinsically safe"** under persistent overloads

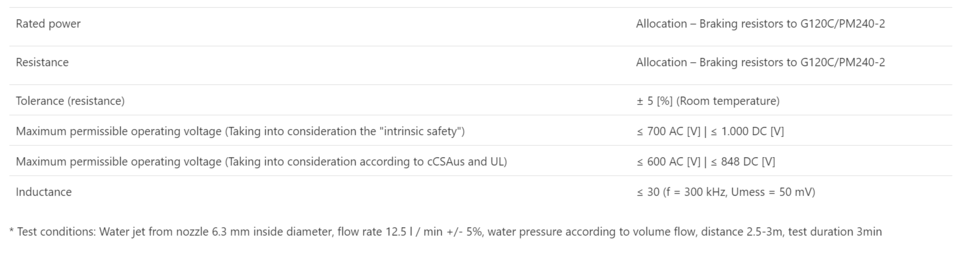

*Test conditions: Water jet from nozzle with an inner diameter of 6.3mm, volume flow 12.5l/min +/- 5%, water pressure in accordance with the volume flow, distance 2.5-3m, test duration 3min

**the intrinsically safety is usually given with 4 time of permanent type power
