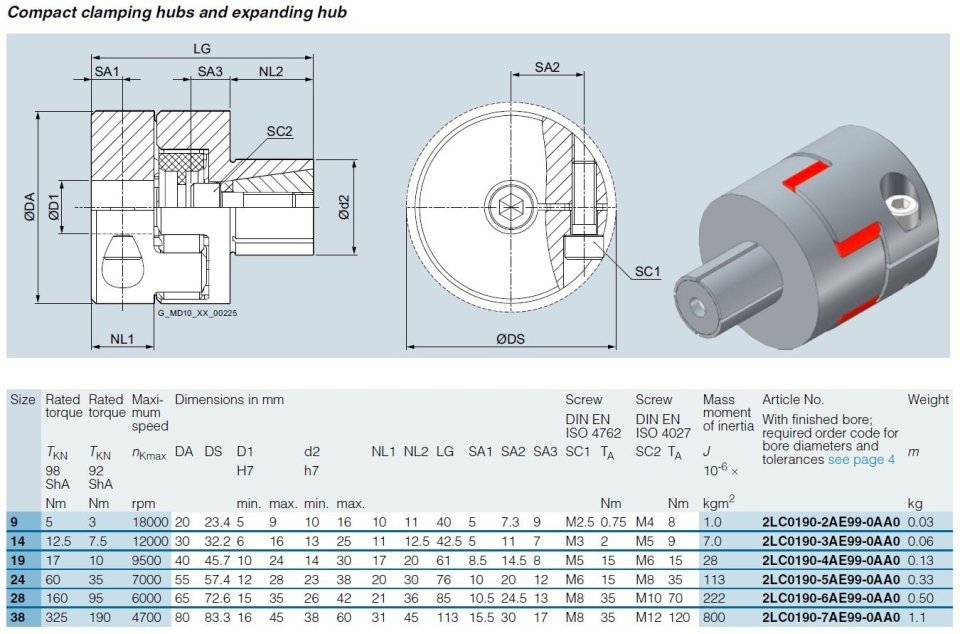

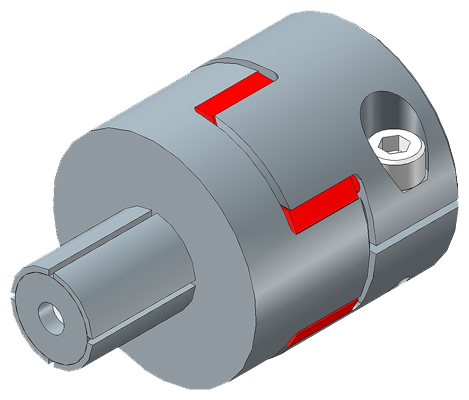

BCS Compact Clamping Hubs and Expanding Hub Elastomer Jaw Coupling 3 - 190 Nm

A hollow shaft can be connected to the expanding hub. The bore for connecting the expanding hub must have a tolerance of H7.

The cam ring is made of polyurethane with Shore hardness 98 ShA as standard. For other hardness grades, see (Downloads) tab.

Weights and mass moments of inertia apply to maximum bore diameters.
