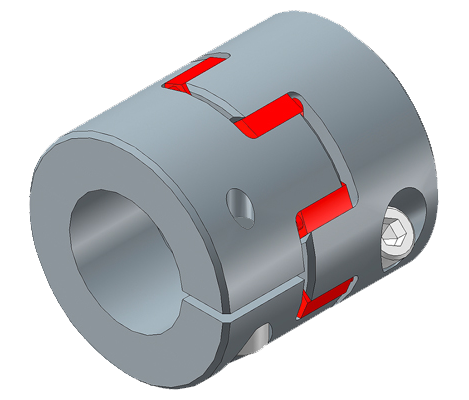

BCC Compact Clamping Hub Elastomer Jaw Coupling 7.5 - 310 Nm

The slotted clamping hub allows a frictionally engaged connection to the input and output shaft. A single tightening screw per hub ensures an easy assembly.

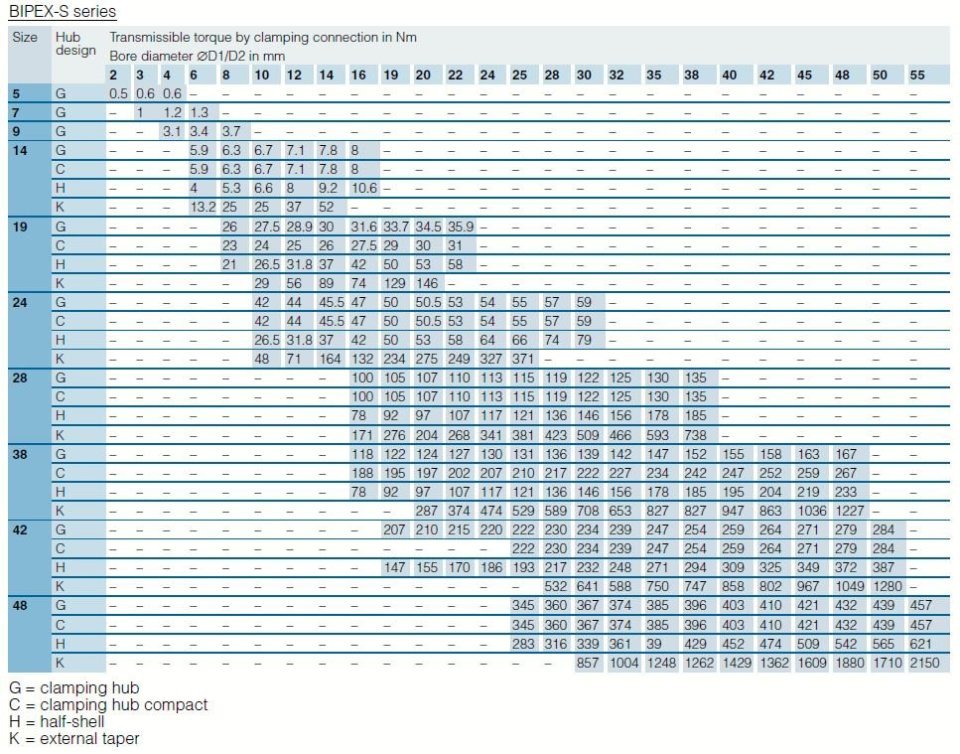

The maximum torques that can be transmitted by the clamping connection can be found in the table below (Manuals).

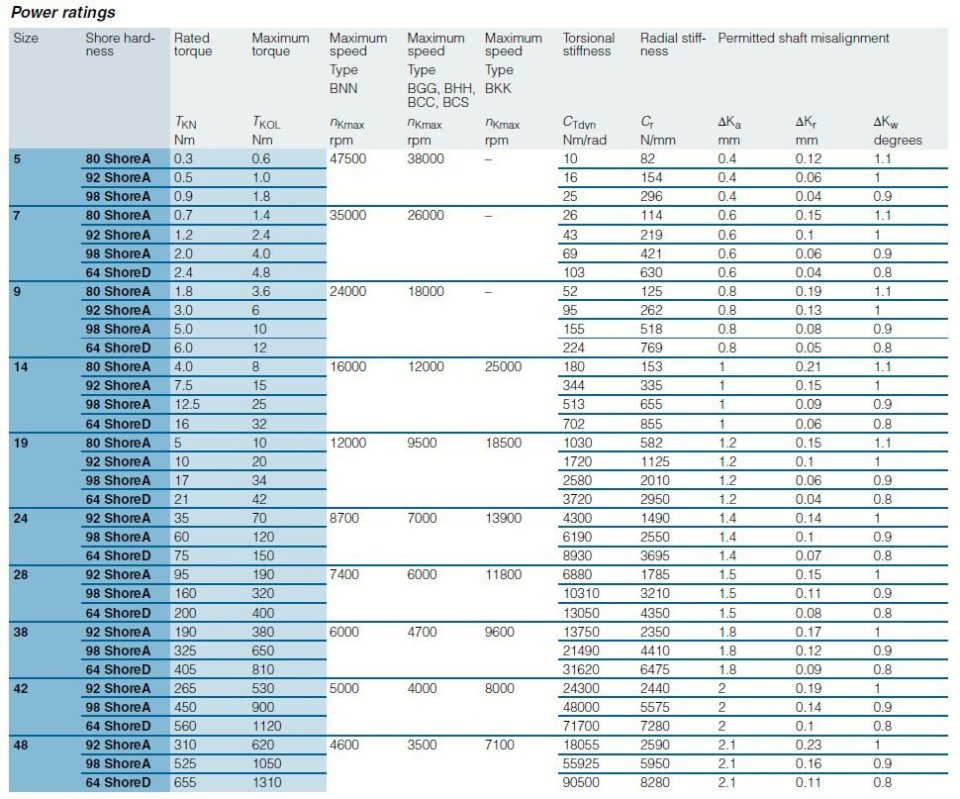

The cam ring is made of polyurethane with Shore hardness 98 ShA as standard (red cam ring).

For other hardness grades, please see the Downloads tab below.

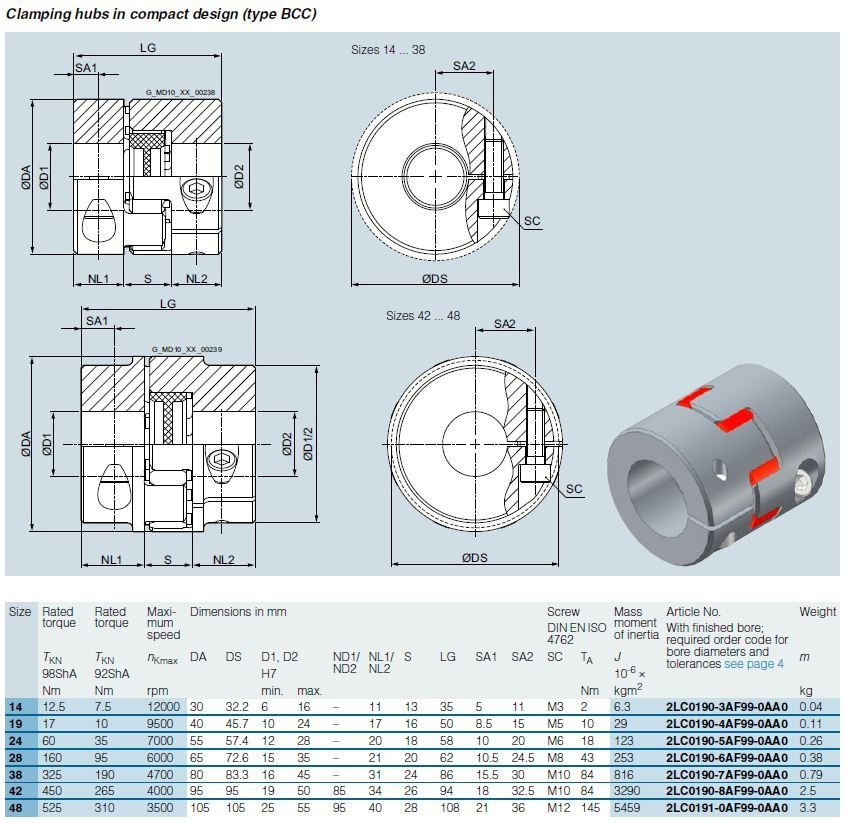

Weights and mass moments of inertia apply to maximum bore diameters.
