CX2020 | Basic CPU module
The CX2020 has a 1.4 GHz Intel® Celeron® CPU; it is fanless and has no rotating components. In addition to the CPU and chipset, the CX2020 also contains the main memory with 2 GB RAM as standard. 4 GB is possible as an option. The controller boots from the CFast flash memory card.
- The basic configuration of the CX2020 includes a CFast memory card, two independent Gbit Ethernet interfaces, four USB 2.0 interfaces and a DVI-I interface.
- The CPU has a 128 kB NOVRAM persistent data memory for situations where no UPS is used.
- The unit can optionally be ordered with a fieldbus or serial interface. Other components from the CX2000 family can be connected via the multi-pin terminals on either side. The operating system is Microsoft Windows Embedded Compact 7 or Windows Embedded Standard 7 P. TwinCAT automation software transforms a CX2020 system into a powerful PLC and Motion Control system that can be operated with or without visualisation. Due to its high performance, the CX2020 can be used for interpolating 3-D path movements with TwinCAT NC I.
Up to four modules can be connected to the basic CPU module. The connection order is irrelevant. Internally, the modules are connected via PCI Express and can be connected subsequently to the CPU "in the field".
The power supply for the CPU module comes from a CX2100 power supply module, which is connected on the right-hand side of the CPU. Two further CFast memory card modules (CX2550-0010) can be connected between the power supply unit and the CPU, so that a total of up to three CFast cards can be used. RAID can be used in situations where more than one CFast card is used.
The extended operating temperature range between -25 and +60 °C enables application in climatically demanding situations.

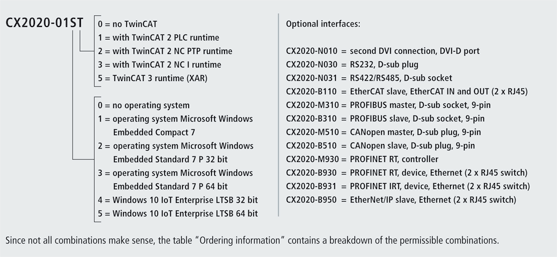

The order identifier is derived as follows:
Overview
| Technical data | CX2020 |
|---|---|
| Processor | Intel® Celeron® 827E 1.4 GHz |
| Number of cores | 1 |
| Flash memory | 4 or 8 GB CFast card (optionally expandable) |
| Internal main memory | 2 GB DDR3 RAM (optionally expandable) |
| Persistent memory | 128 KB NOVRAM integrated |
| Interfaces | 2 x RJ45, 10/100/1000 Mbit/s, DVI-I, 4 x USB 2.0, 1 x optional interface |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Microsoft Windows Embedded Compact 7, Microsoft Windows Embedded Standard 7 P or Microsoft Windows 10 IoT Enterprise LTSB |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | via power supply module (E-bus or K-bus, automatic recognition) |
| Power supply | 24 V DC (-15 %/+20 %) |
| Max. power loss | 15 W (including the system interfaces) |
| Dimensions (W x H x D) | 144 mm x 100 mm x 91 mm |
| Weight | approx. 1160 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals | CE, UL |
| TC3 performance class | performance plus (50); please see here for an overview of all the TwinCAT 3 performance classes |
