BAHR QSK

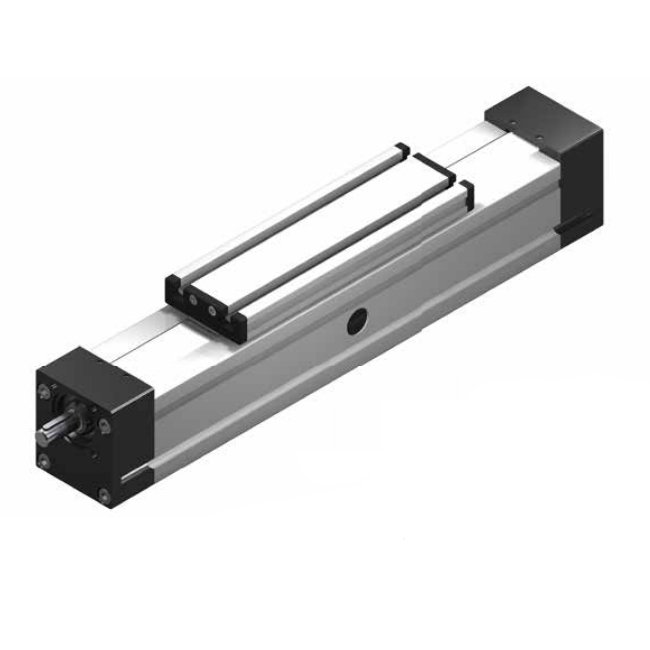

Mechanical linear unit with internal rail guide for higher moments.

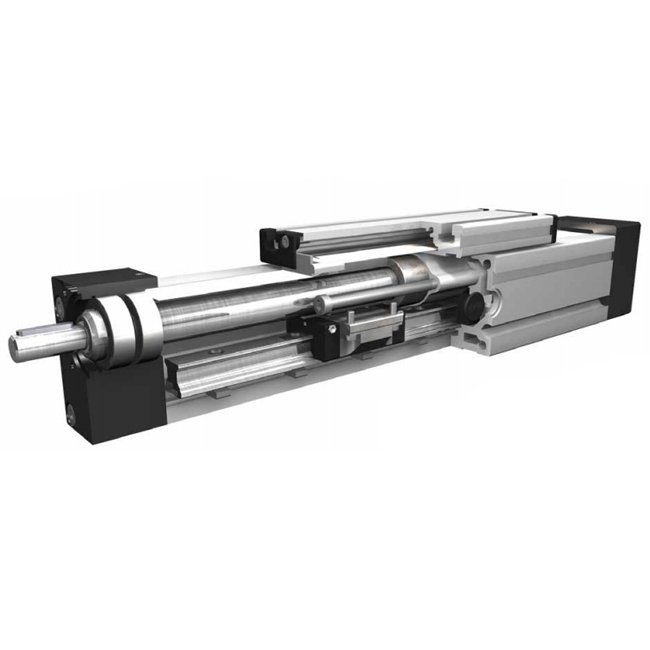

This unit consists of a square aluminium profile with an integrated ball rail. The carriage is driven by means of a rotating spindle with leading nut. The openings of the guide body are sealed by a stainless steel cover band to protect the drive from splash water and dust.

Fitting position: As required. Max. length 3000 mm

Carriage mounting: By T-slots.

Unit mounting: By half round slots and tapped holes in the bearing blocks, mounting sets

Overview
