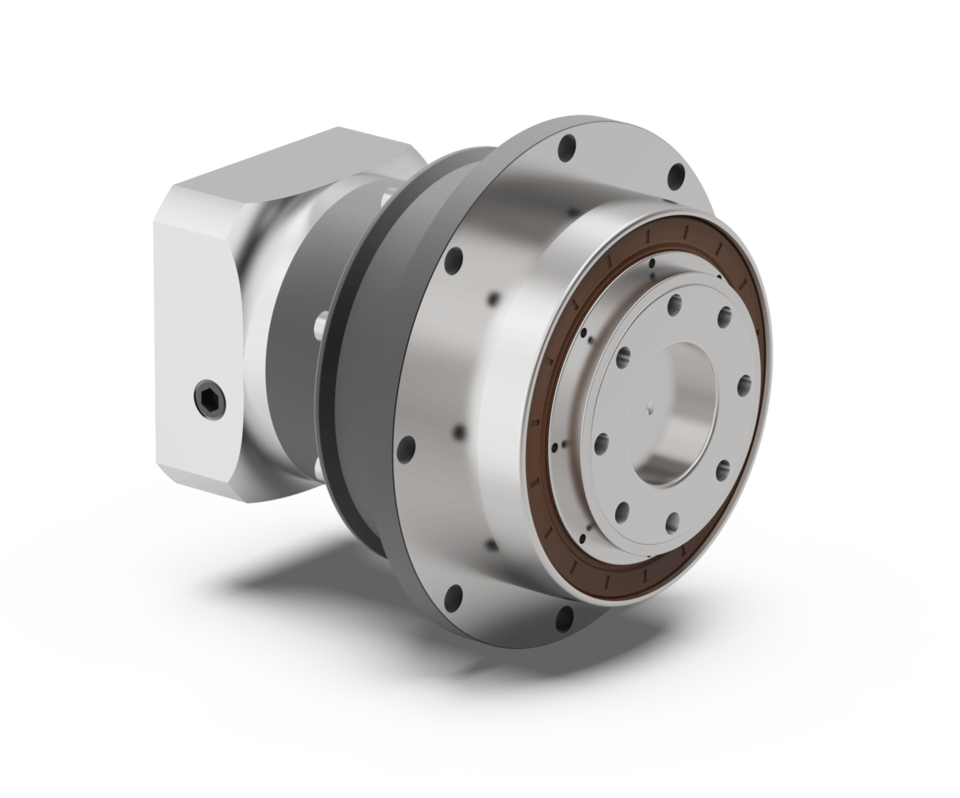

Neugart has expanded its offering for delta robot applications with the launch of the new NDFC gearbox series combining cost efficiency with dependable performance - and it’s now available to HMK customers across the UK and ROI.
As the leading planetary gearbox manufacturer, our long-standing partner Neugart has developed the NDFC series to provide a cost-effective alternative for applications where maximum precision is not the top priority, but reliability, robustness, and strong price-performance are essential.
The series sits below the NDF range, while still incorporating a number of proven design features, including Neugart’s trusted sealing concept and the dynamic, inertia-reducing clamping system on the drive side.
The NDFC range includes three frame sizes (064, 090, 110) and two-stage ratios, ranging from 16 to 100, covering a broad range of delta robot applications.
Key features include:
- Standard torsional backlash is less than 5 arcminutes, with optional optimisation to under 3 arcminutes (frame 064) or under 1 arcminute (frames 090 and 110), allowing users to choose the level of precision required and achieve cost savings if the standard backlash is sufficient
- Ideal for two- and three-axis delta robots, delivering reliable performance in high-speed applications
- Ensures reliable cycle times and high system availability for packaging, end-of-line palletising, and sorting systems, particularly in the food and beverage industry
- Compact delta robots with small work envelopes benefit from a balanced combination of dynamics, stiffness and efficiency, especially in frame size 064
In addition, the NDFC series offers optional features for demanding environments, making it well-suited for applications in pharmaceutical, food and beverage industries, where hygiene and reliability are critical:
- Food-grade lubrication without compromising performance
- Stainless steel output shaft, nickel-plated output flange, and painted surface for enhanced corrosion protection.
Gary Kitchin, Managing Director at HMK Automation, said: “We’re excited to see the launch of Neugart’s new NDFC series - a reliable and economical solution for delta robot applications that complements the high-performance NDF range.
“This gearbox series provides fast, reliable and affordable performance for packaging, sorting, and other high-throughput systems, all at an attractive price point. This broadens our offer to OEMs, from gearbox to 3D Delta from our partner Englert Robotics - all underwritten by Neugart’s legendary durability.
“Backed by our 30 year partnership with Neugart, and supported by our in-house engineering expertise, HMK is uniquely positioned to help our customers integrate this market-leading technology seamlessly into their automation projects, and we look forward to supporting machine builders to get the most from the new NDFC series.”
Find out more about the NDFC range on the Neugart website or contact the HMK Sales Team.
