Siemens N-BIPEX Series Type BWN

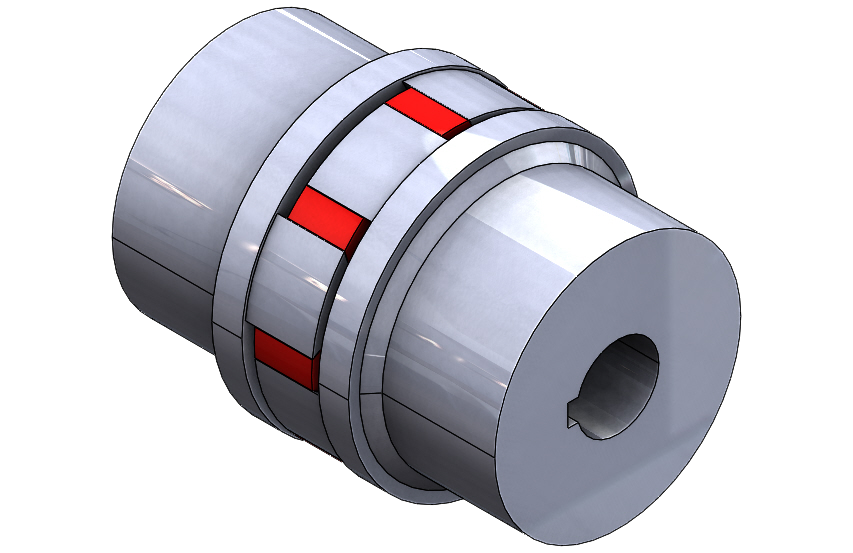

The N-BIPEX coupling of type BWN comprises two identical hub parts connected by a cam ring of elastomer material.
The hubs are connected to the respective shafts via finished bored with parallel keyway connection or Taper clamping bushes. N-BIPEX couplings are positive-locking and torsionally flexible thanks to the thermoplastic polyurethane cam ring.
Coupling Materials
Hubs
EN-GJS-400-15
Cam ring
TPU 92 ShoreA -50c to +100c without any restrictions
TPU 95 ShoreA -50c to +100c without any restrictions
TPU 64 ShoreD -50c to +100c without any restrictions
Please note that there are other types of N-BIPEX couplings, details of which can be found in the brochure below:
BWT
Coupling as a shaft-shaft connection with Taper clamping bushes
BNT
Coupling as a shaft-shaft connection with drilled and grooved hubs and a Taper clamping bush
