Neugart PLQE
Economy planetary gearbox
The PLQE is uncomplicated and powerful. It can be connected directly to your installation without the need for an intermediate flange. The large deep groove ball bearing at the output can absorb large axial and radial forces. In the process, only little heat is generated, so reliable operations are assured even in complex production cycles.
Available in three sizes: 40, 60, 80 and 120
Features:
- Low heat generation at highest speeds
- Optimized output bearing
- Square output flange
- The highest dynamics in multiple axis systems
- For any mounting position
- Precise gearing
Optimized output bearing

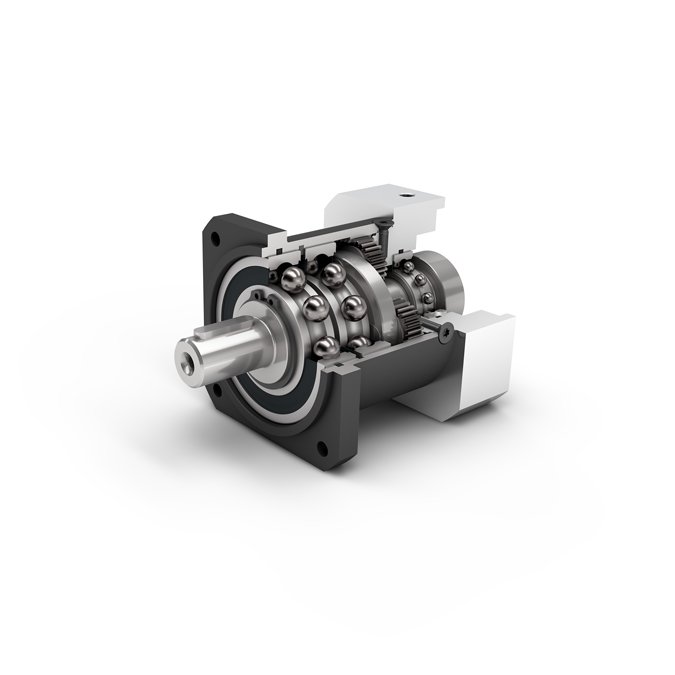

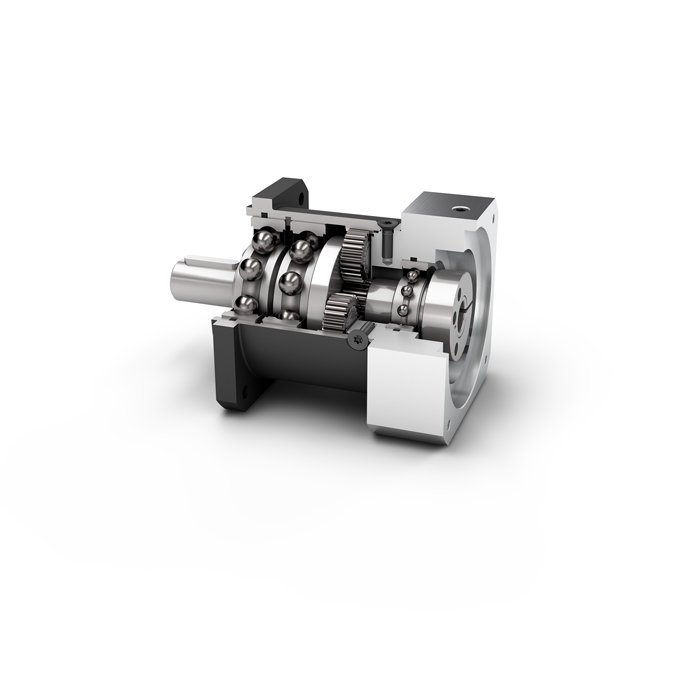

Large tapered roller bearings make the PLQE especially powerful. It can even absorb high axial and radial forces with ease. Your drive elements can therefore be installed directly on the output shaft without the need for additional bearing components.
Easy installation

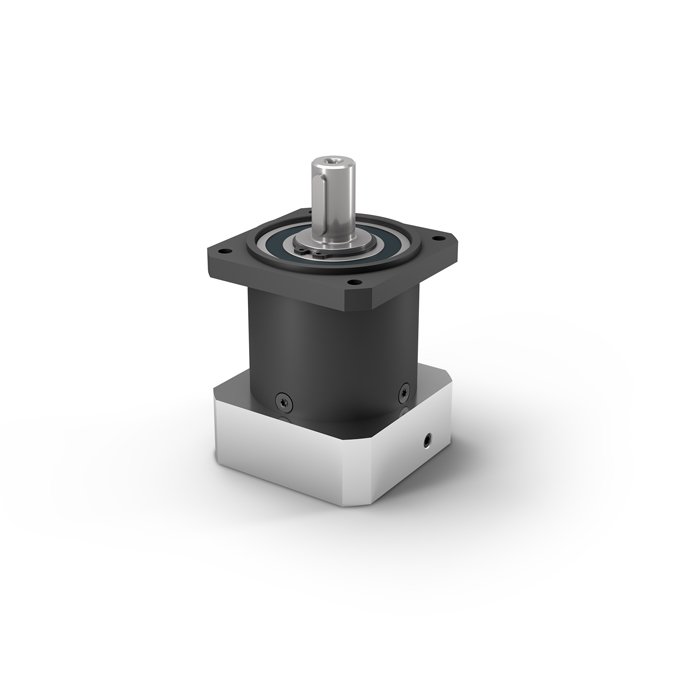

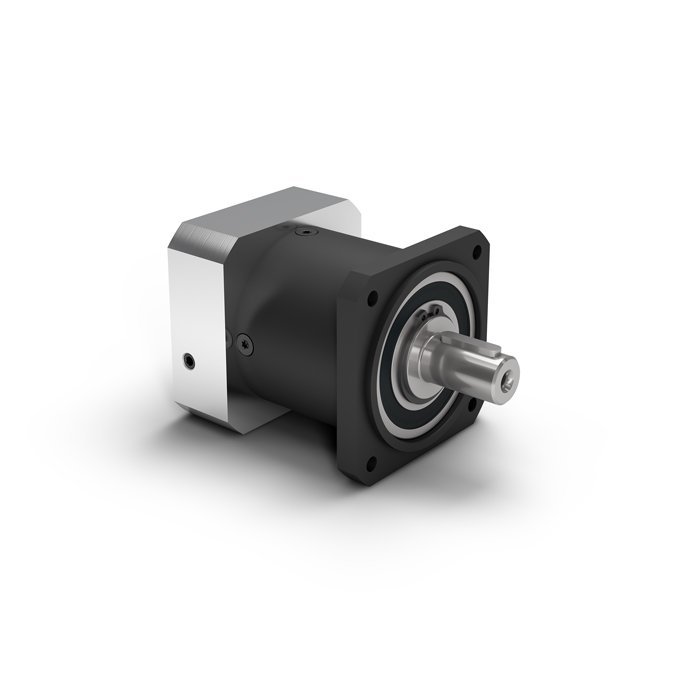

The square output flange on the PLQE with through hole can be mounted directly on the installation – saving time and money. These through holes facilitate full accessibility during installation. This makes your engineering much easier.
Low heat generation
At the highest speeds A Neugart developed low-friction bearing design and optimized lubrication make it possible: The PLQE overcomes extreme challenges.
