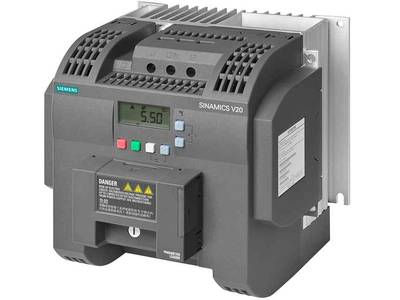

SIEMENS SINAMICS V20
The versatile inverter for basic solutions
The SINAMICS V20 sets itself apart as a result of its quick commissioning times, ease of operation, robustness and cost-efficiency. With seven frame sizes, it covers a power range extending from 0.12 kW up to 30 kW.
With the frame sizes FSAA and FSAB for the single-phase 230V mains operation, the SINAMICS V20 is Siemens smallest inverter on the market so far. With a width of just 68 millimeters and a height of 142 millimeters, Siemens have substantially reduced the installation dimensions of the SINAMICS V20 for low powered motors.
Functions
- Commissioning with commissioning wizard
- Parameter setting and saving
- Run motor in JOG mode
- Monitoring converter status
- Quick diagnosis
- Backup and restore settings
Easy to install
- Push-through and wall mounting – side-by-side possible for both
- USS and MODBUS RTU at terminals
- Integrated braking chopper from 7.5 kW to 30 kW (10 hp up to 40 hp)
- Electromagnetic compatibility (EMC) category C1/C2
Easy to use
- Parameter loading without power supply
- Easy commissioning, operation and diagnosis with the webserver module SINAMICS V20 Smart Access
- Integrated application and connection macros
- Keep Running Mode for uninterrupted operation
- Wide voltage range, advanced cooling design and coated PCBs increase robustness
Overview
| Voltage and power range: | 1AC 200 V - 240 V, ±10 % |
| 3AC 380 V - 480 V +10 % / -15 % | |
| 0.12 kW - 30 kW (0.17 hp up to 40 hp) | |
| Control Modes: | V/f, V2/f, FCC, V/f multi-point |
