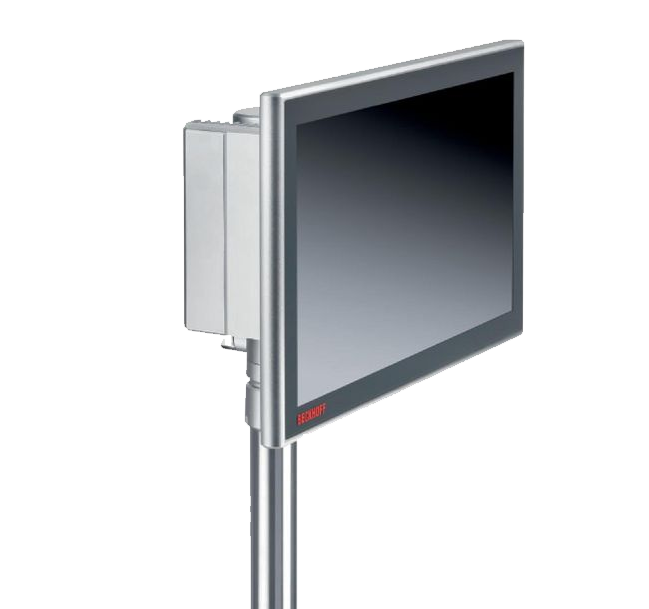

CP32xx | Multi-touch Panel PC
The high-performance multi-touch Panel PC
Featured CPU’s – CP3212, CP3215, CP3216, CP3218, CP3219, CP3221, CP3224 (See below for ordering information).
Multi-touch Panel PC IP65, 12 to 24”, Based on Intel Celeron & Core i3,i5,i7 CPU
TC3 performance class 50 (Performance Plus) to 80 (Very High Performance)
With the CP32xx series, a high-end Panel PC with multi-touch can be used directly in the field. The devices in a slender aluminium housing feature complete IP 65 protection and are designed for mounting arm installation. The Panel PCs offer maximum computing power with processors of the latest generation, such as Intel® Celeron® or Core™ i3, i5 or i7.
A choice of seven different multi-touch TFT displays in sizes between 12-inch and 24-inch and 4:3, widescreen, landscape or portrait formats are available.
- Cooling is achieved by means of cooling fins on the outer wall as well as fans inside the closed housing.
- The operating temperature range is 0 to 45 °C.
- The Panel PC features an integrated rotatable and tiltable mounting arm adapter for a 48 mm diameter mounting arm tube.
- There is a choice of attaching the mounting arm from above or below. The connecting cables are laid through the mounting arm.
- The Industrial PC connections (up to six) with IP 65 connectors are positioned in the large wiring space and are easily accessible.
- The wiring area can be opened easily without dismounting the device from the mounting arm, offering fast access to the IP 65 connectors for power supply, Ethernet and optional fieldbus or USB.
- Prefabricated cables in various lengths are available for all connections.
- The C32xx series Panel PCs are supplied with a 24 V power supply unit, optionally with integrated uninterruptible power supply (UPS). A battery pack can be connected externally and installed on a DIN rail in the control cabinet.
The CP32xx Panel PCs are equipped with one or two hard disks, SSDs or CFast cards or combinations thereof. With the on-board RAID controller, two same hard disks, SSDs or CFast cards can be mirrored. The data media and the lithium battery of the system clock are accessible from the rear under the cover. There is a PCI slot in the CP32xx. A factory-fitted FC9062 PCIe module with two additional Ethernet ports can be added. NOVRAM is also available as PCIe module for fail-safe data storage.
Please see the below variants:
Overview
| Variants | Processor | Available |
|---|---|---|
| CP32xx-0000 | Intel® Celeron®, 2 Cores (TC3: 50*) or Intel® Core™ i3, 2 Cores (TC3: 60*) or Intel® Core™ i5, 2 Cores (TC3: 70*) or Intel® Core™ i7, 4 Cores (TC3: 80*) | Yes, but not recommended for new projects |
| CP32xx-0010 | Intel® Celeron®, 2 Cores (TC3: 50*) or Intel® Core™ i3, 2 Cores (TC3: 60*) or Intel® Core™ i5, 2 Cores (TC3: 70*) or Intel® Core™ i7, 4 Cores (TC3: 80*) (4th generation) | Yes |
| CP32xx-0020 | Intel® Celeron®, 2 Cores (TC3: 50*) or Intel® Pentium®, 2 Cores (TC3: 50*) or Intel® Core™ i3, 2 Cores (TC3: 60*) or Intel® Core™ i5, 4 Cores (TC3: 70*) or Intel® Core™ i7, 4 Cores (TC3: 80*) (6th/7th generation) | Yes |
*The TwinCAT 3 performance class defines the exact ordering number for the respective TwinCAT 3 product. Please see here for an overview of the TC3 performance classes.
| Ordering information | Multi-finger touch screen |
|---|---|
| 12-inch display 800 x 600 | CP3212-00xx |
| 15-inch display 1024 x 768 | CP3215-00xx |
| 15.6-inch display 1366 x 768 | CP3216-00xx |
| 18.5-inch display 1366 x 768 | CP3218-00xx |
| 19-inch display 1280 x 1024 | CP3219-00xx |
| 21.5-inch display 1920 x 1080 | CP3221-00xx |
| 24-inch display 1920 x 1080 | CP3224-00xx |
